As social and economic activities grow more dynamic, the demand for secure identity verification and document protection continues to rise. Whether for transportation, financial services, large-scale conferences, sporting events, or parking management, personal IDs and access permits must remain well-protected and tamper-proof.
Heat seal laminating pouches offer a reliable, high-security solution. When heat and pressure are applied, the laminate bonds tightly to the document, creating a durable layer that is waterproof, moisture-resistant, and tamper-evident.
Because of these advantages, they are widely used for conference badges, event passes, parking permits, employee and student IDs, and other high-security credentials.
In this guide, you’ll learn how they work, how to choose the right size and thickness, the proper laminating temperature, and what to consider when selecting a reliable supplier.
1. How Do Heat Seal Laminating Pouches Work?
Heat-seal laminating pouches are made from two layers:
- PET layer (polyester film) – provides clarity, rigidity, and abrasion resistance
- EVA adhesive layer (ethylene-vinyl acetate) – melts when heated and bonds with the PET layer
When used with a heat laminator, the pouch is sealed under 130–150°C (265–300°F) and pressure. The EVA adhesive melts and securely bonds the top and bottom layers around the document, forming a durable, tamper-evident protective coating.
✅ After lamination, documents become: waterproof, moisture-resistant, scratch-resistant, and securely sealed.
📌 Quick Tip: Heat Seal vs. Cold Seal
- Heat seal pouches require heat to create a stronger, longer-lasting seal.
- Cold seal pouches use pressure only and are suitable for heat-sensitive materials, but offer less durability.
2. What Size Heat Seal Laminating Pouches Should You Use?
In most cases, the pouch should be 3–5 mm larger than the document edges to ensure a complete seal. If you plan to punch holes for lanyards or badge clips, you’ll need extra space.
- Standard paper documents → choose a pouch slightly larger than the insert size
- Teslin synthetic paper → the pouch can match the exact inner size since Teslin bonds seamlessly with the laminate
✅ Common Standard Sizes and Applications
| Pouch Size (mm) | Application | Notes |
| 86 × 54 | CR80 ID cards, membership cards | Standard ID size |
| 92 × 60 | CR80 ID card | Extra laminate edge |
| 115 × 175 | Conference badges, event passes | Popular badge size |
| 175 × 225 | Conference badges, event passes | Popular badge size |
| 152 × 254 | Parking permits, access passes | Larger format |
| 210 × 297 (A4) | Temporary vehicle permits, vehicle license | Larger format |
✅ Custom Sizes Available
Popular custom options include 30×50, 50×70, 60×92, 96×129, 105×187, 110×170, 112×185, 115×125, 120×185, 130×190, 150×270, 180×121, and 210×297 mm.
Pro Tip: If you require hole punching, allow at least 5–10 mm extra margin beyond the document size.
3. 3mil vs. 5mil Heat Sealed Laminating Pouches
Laminating pouch thickness is measured in mil (1 mil = 0.0254 mm). The most common options are 3mil, 5mil, 7mil, and 10mil, each suited for different levels of protection.
| Thickness | Flexibility | Protection Level | Recommended Use |
| 3mil (~75μm) | Flexible | Basic | Temporary passes, short-term event cards |
| 5mil (~125μm) | Moderate | High | IDs, driver’s licenses, membership cards |
| 7mil (~175μm) | Rigid | Strong | Butterfly pouches, event credentials |
| 10mil (~250μm) | Very rigid | Maximum | High-security IDs, long-term outdoor use |
One layer of laminating pouch is generally 10mil, and the card core is also about 10mil. After lamination, the finished card reaches 30mil, which meets the ISO standard thickness for ID-1 cards.
✅ For personal IDs and anti-counterfeit documents, 5mil or thicker is recommended.

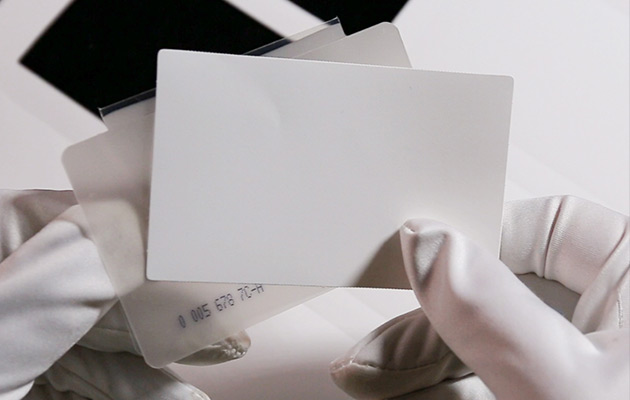

For a borderless, professional finish similar to government-issued IDs, choose 7mil or 10mil butterfly laminating pouches.
4. What Temperature Is Needed to Laminate?
The ideal temperature for optical heat-sealed laminating pouches is 130–150°C (265–300°F).
- Too low → the adhesive won’t fully melt, causing weak bonding, bubbles, or delamination
- Too high → the laminate may warp, optical patterns may distort, and Teslin may discolor
✅ Recommendation:
- Always test a small sample before full production
- Adjust the laminator speed and temperature based on pouch thickness
5. Where to Buy Heat Seal Laminating Pouches?
Many suppliers offer heat seal laminating pouches, but for conference badges, event passes, and high-security government IDs, choosing the right partner is crucial.
Work with a manufacturer equipped with optical security technology, in-house design, and proven experience in secure laminating solutions. A reliable factory ensures consistent quality, flexible customization for size, thickness, and security features, plus on-time delivery.
If you don’t have a trusted supplier yet, Image Technology (IMAGE TECH) is a partner you can rely on.
We specialize in optical heat seal laminating pouches and have over a decade of expertise serving global clients. Our factory holds ISO, IHMA, and RoHS certifications and owns 60+ core patents covering optical film materials, security design, and advanced production processes.
Whether you need secure laminating solutions for large-scale events or high-security ID projects, we deliver professional, customized solutions with guaranteed quality and confidentiality.
6. Conclusion
Heat sealed laminating pouches are a cost-effective, versatile, and highly reliable solution for document protection and anti-counterfeiting. From temporary event badges to high-security national IDs, there’s always a suitable pouch thickness and style.
For maximum security, consider optical heat seal laminating pouches combined with personalized printing, UV fluorescent inks, laser engraving, and advanced optical security technology to achieve the highest level of document protection.
With the right materials and a trusted supplier, you can ensure that every ID or credential remains secure, durable, and professional in appearance—meeting both practical and security needs.
